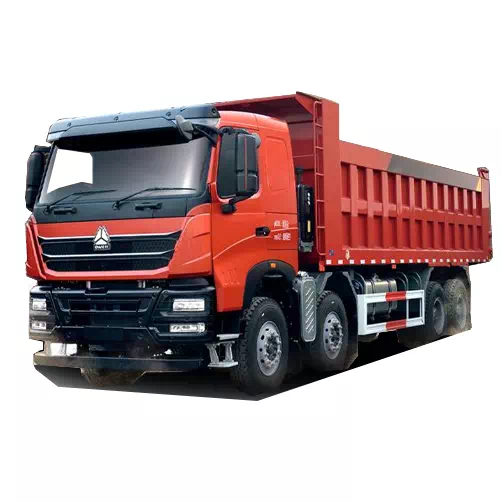

HOWO TH7 dump truck (for highway and mining)
Description:HOWO TH7 dump truck, engineered for highway and mining transport, features high-horsepower engine and reinforced chassis for heavy-duty performance and reliability.
Product model:HOWO TH7 dump truck
Category :Medium and heavy truck series
Update time:2025-05-15
Engine Type: | WeiChai WP13.550E62 |
Maximum Power: | 550hp |
Emission standards: | China VI |
Product Introduction
The HOWO TH7 dump truck is a high-performance engineering vehicle launched by Sinotruk for both road transport and mining operations. It is designed for heavy-load and high-intensity use scenarios. The vehicle is equipped with a large-displacement, high-horsepower engine, which has the advantages of low-speed and high torque, powerful start-up and rapid acceleration; the multi-layer structure frame made of high-strength steel plates is matched with an optimized load-bearing system to effectively improve the reliability and load-bearing capacity of the vehicle. The cab continues the high-end and comfortable style of HOWO, with a spacious driving environment and complete safety configuration. It is suitable for complex environments such as sand and gravel transportation, mining area transfer, and infrastructure projects, truly achieving high attendance, high efficiency, and low failure, and is an ideal choice for enterprises to reduce costs and increase efficiency.
Technical Parameters
Engine model | WP13.550E62 |
Engine net power (kw)/speed (r/min) | 405/1900 |
Engine maximum torque (Nm)/speed (r/min) | 2550/950-11400 |
Gearbox | HW25712XSCI+HW50 direct-connected power take-off |
Clutch (mm) | φ430 |
Rear axle model | MCP23ZG |
Rear axle speed ratio | 5.92 |
Fuel tank (L) | 600l |
Frame section (mm) | 28+8+8/316 integral support plate |
Suspension (front spring and rear spring) | Front and rear super-strong multi-leaf springs (11/11/12) |
Tire | 12.00R20 (mixed pattern) |
Vehicle Configuration
Engine model | WP8.550E62 |
Appearance (mm) | 11800,11940,11610,11710x2520.2550x3490,3635.3850.3980 |
Wheelbase (mm) | 4825 |
Front overhang and rear overhang (mm) | 1950/1350 |
Factory-specified maximum total mass (Kg) | 31000 |
Rated number of passengers (persons) | 2 |
-
HOWO TH7 dump truck (for highway and mining)
Engine Type: WeiChai WP13.550E62 Maximum Power: 550hp Emission standards: China VI -

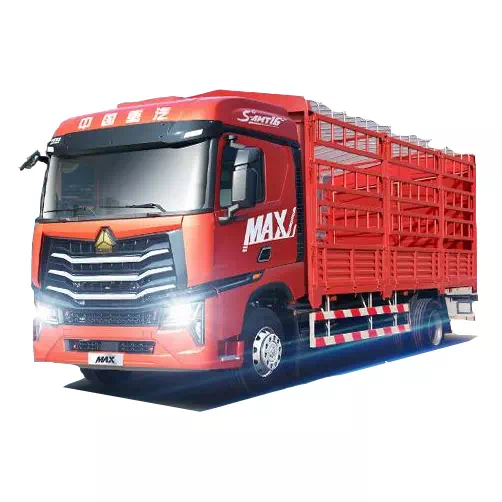

HOWO MAX-4×2-Cangzha Stake Truck
