Location：

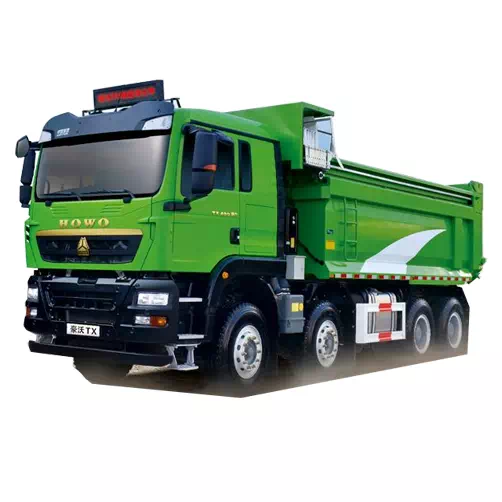

HOWO TX7 dump truck (urban construction waste)
Description：HOWO TX7 dump truck is designed for urban muck transport with high-performance powertrain, powerful output, fuel efficiency and high safety—ideal for city construction logistics.
Product model：HOWO TX7 dump truck
Category ：Medium and heavy truck series
Update time：2025-05-16
| Engine Type: | WeiChai WP8. 350E62 |
| Maximum Power: | 460hp |
| Emission standards: | China VI |
Product Introduction
The HOWO TX7 dump truck is a high-performance dump truck built by Sinotruk specifically for urban construction waste soil transportation. It has six core advantages: "powerful power, precise fuel saving, efficient attendance, safety and reliability, comfortable driving, and smart enjoyment". The vehicle is equipped with a special engineering power chain, integrating Weichai's high-power engine, MAN technology drive axle and efficient transmission system. It has both high torque and stability, and can adapt to complex working conditions such as heavy loads and frequent starts and stops in cities. The whole vehicle has undergone rigorous durability tests and adopts a new generation of TX7 cab. It has comfortable control and excellent safety performance, which comprehensively improves the efficiency of waste soil transportation and operational reliability. It is the preferred transportation equipment for urban construction logistics companies to reduce costs and increase efficiency.
Technical Parameters
| Engine model | WP8. 350E62 |
| Engine net power (kw)/speed (r/min) | 257/2100 |
| Engine maximum torque (Nm)/speed (r/min) | 1400/1200-1600 |
| Gearbox | HV19712L gearbox + HW50 direct-connected power take-off |
| Clutch (mm) | φ |
| Rear axle model | MCX16ZG self-adjusting arm double rear axle (drum) |
| Rear axle speed ratio | 4.8 |
| Fuel tank (L) | 400L |
| Frame section (mm) | 8+4/280 |
| Suspension (front spring and rear spring) | Front and rear standard version multi-leaf springs (7/7/10) |
| Tire | 11.00R20 (mixed pattern) |
Vehicle Configuration
| Engine model | WP8.350662 |
| Appearance (mm) | 8700,8800,9000,9200,8900x2550,2520x3450 3800 3300 3550 3600 3200 |
| Wheelbase (mm) | 2825 |
| Front overhang rear overhang(mm) | 1800/1350 |
| Factory-specified maximum total mass (Kg) | 31000 |
| Rated number of passengers (persons) | 2 |
