Turbocharger

Product Overview

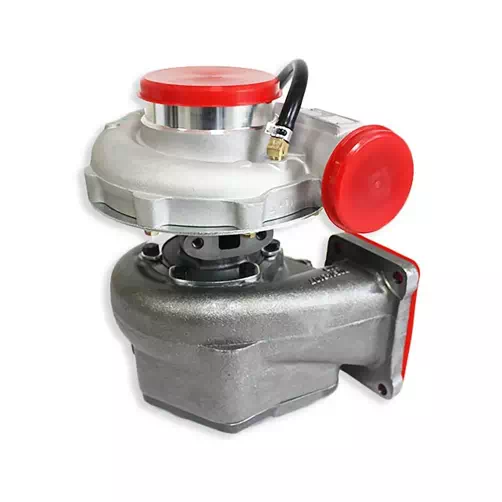

The VG1560118229 turbocharger is a high-performance turbocharger designed for heavy-duty diesel engines. It is widely used in Sinotruk HOWO series trucks and other commercial vehicles equipped with engines such as Weichai and Shanghai Diesel. The turbocharger uses exhaust gas to drive the turbine impeller to increase the intake pressure and air flow, thereby significantly improving the engine's combustion efficiency, output power and fuel economy.

Main Features

High-efficiency supercharging: The use of high-precision turbine and compressor impeller can effectively increase the intake pressure and achieve engine power optimization and torque improvement.

High-temperature resistant design: The key components are made of high-temperature alloy materials, which can withstand exhaust gas temperatures up to 900°C, ensuring stable operation under harsh working conditions.

Long-life bearing system: Equipped with high-wear-resistant ceramic bearings and efficient lubrication structure to reduce friction loss and extend the life of the turbocharger.

Precise Match: Designed for HOWO series engines (such as WD615, D10, D12) to ensure seamless installation and optimal boost effect.

Reduced emissions: Helps engines better meet National V/National VI or equivalent emission standards by optimizing the combustion process.

Technical Parameters

Part Number: VG1560118229

Applicable Engines: Weichai WD615 / D10 / D12 Series

Maximum Boost Pressure: ≥ 2.0 bar

Maximum Speed: 110,000 rpm

Operating Temperature Range: -40°C to +950°C

Material: High-temperature nickel-based alloy & aluminum alloy compressor housing
