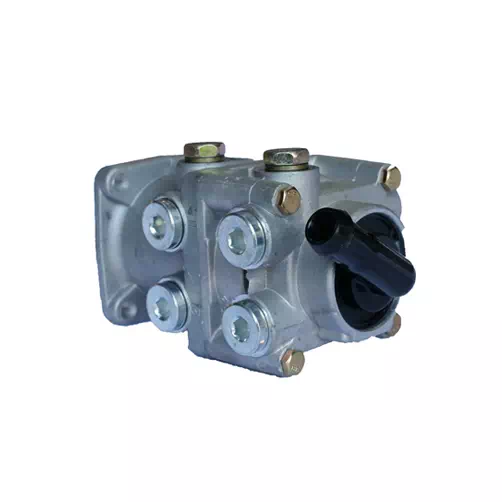

Brake Master Valve

Description：High-performance brake master valve for heavy trucks and trailers. Dual-circuit design ensures reliable air brake control. Compatible with WABCO, HOWO, SHACMAN, and other OEM models. Durable, corrosion-resistant, and precision-tested.

Product model：

Category ：Brake System

Update time：2025-06-30

Product Introduction

The brake master valve is a core component of the air brake control system in heavy-duty trucks, trailers, and buses. It regulates and distributes compressed air to different brake circuits, ensuring precise braking response and reliable vehicle safety. This valve is typically mounted in the driver’s control system and directly connected to the foot brake pedal or hand brake mechanism.

Our brake master valves are compatible with various models from SINOTRUK (HOWO), SHACMAN, FAW, Dongfeng, Foton, and can replace popular configurations such as WABCO-type dual-circuit valves. Designed for durability, accurate control, and long service life.

Key Features

Dual-circuit design for independent front and rear brake control
High-precision aluminum or cast iron housing for durability and corrosion resistance
Fast-response spool mechanism ensures stable air flow and braking delay prevention
Optional electric sensor interface for ABS/EBS integration
100% air-tight tested before delivery
OEM numbers and custom mounting specifications supported

Technical Specifications

Parameter	Specification
Operating Pressure	0.8 – 1.0 MPa
Inlet Thread Size	M22×1.5 / G1/2 (customizable)
Number of Circuits	Single / Dual (standard: dual-circuit)
Material	Aluminum alloy / Cast iron
Control Type	Pneumatic (foot valve / hand brake valve)
Working Temperature	-40°C ~ +80°C
Applicable Vehicles	Heavy trucks, trailers, construction vehicles, buses
Compatible Brands	WABCO-type, KNORR, HOWO, SHACMAN, FAW, Dongfeng, etc.
